190,40 zł

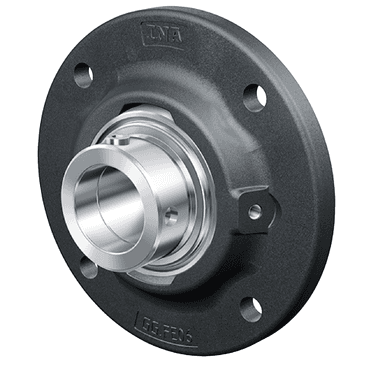

Housing units RFE, four-bolt flanged housing units, cast iron, centring spigot, eccentric locking collar, R seals
| Class description short | Flanged housing unit |
| Mass netto | 0.83 kg |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 120.0 °C |
| Basic dynamic load rating, radial | 14900.0 N |
| Basic static load rating, radial | 7800.0 N |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Bearing designation | GE25-XL-KRR-B |
| Bore diameter | 25.0 mm |
| Brand | INA |
| Connection thread for lubrication | M6 |
| Diameter spigot | 75.0 mm |
| Diameter spigot clearance | h8 |
| Distance fixing bore | 92.0 mm |
| Distance raceway | 9.5 mm |
| Fatigue load limit, radial | 410.0 N |
| Fixing bore | 9.0 mm |
| Flange width | 115.0 mm |
| Bearing in kit | GE25-XL-KRR-B |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | durchgehend |
| Distance between mounting bolt centerlines (length) | 92.0 mm |
| Height bearing seat | 57.5 mm |
| Housing height | 115.0 mm |
| Housing in kit | RFE25-XL |
| Housing material | GG |
| Housing shape | Rund |
| Housing sort | Flanged |
| Housing split | Nein |
| Inner diameter bearing | 25.0 mm |
| Housing length | 115.0 mm |
| Location on shaft | Acc |
| Housing qty bolts | 4 |
| Outer diameter bearing | 52.0 mm |
| Sealing type | LIP |
| Housing width | 44.5 mm |
| Basic dynamic load rating | 14900.0 N |
| Basic static load rating | 7800.0 N |
| Height flange | 115.0 mm |
| Height housing | 22.0 mm |
| Height spigot | 3.0 mm |
| Housing | GG.FE05 |
| Locking collar total width | 44.5 mm |
| Marketing category | XL |
| Material | GG |
| Number of housings | 1.0 |
| Number of screwing holes | 4.0 |
| PFAS | nein |
| Pitch circle diameter (holes) | 92.0 mm |
| Thickness of flange | 9.0 mm |
| Total height unit | 36.4 mm |
