1030,60 zł

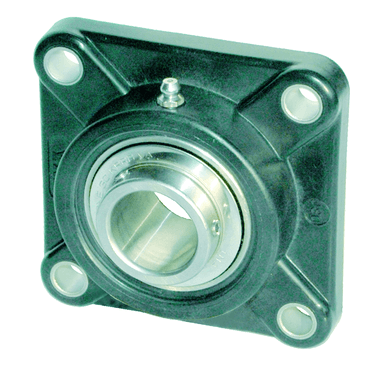

Flanged housing unit RCJY..-TV-VA
| Class description short | Flanged housing unit |
| Mass netto | 1.257 kg |
| Width | 51.6 mm |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 80.0 °C |
| Basic dynamic load rating, radial | 33500.0 N |
| Basic static load rating, radial | 22100.0 N |
| Bearing designation | GYE50-KRR-B-FA107-VA |
| Bore diameter | 50.0 mm |
| Brand | INA |
| Distance fixing bore | 111.0 mm |
| Distance raceway | 25.0 mm |
| Fatigue load limit, radial | 1090.0 N |
| Fixing bore | 17.0 mm |
| Flange width | 143.0 mm |
| Bearing in kit | GYE50-KRR-B-FA107-VA |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | durchgehend |
| Distance between mounting bolt centerlines (length) | 156.9777 mm |
| Height bearing seat | 71.5 mm |
| Housing height | 143.0 mm |
| Housing in kit | RCJY50-TV-VA-HLA |
| Housing material | PL |
| Housing shape | Viereck |
| Housing sort | Flanged |
| Housing split | Nein |
| Inner diameter bearing | 50.0 mm |
| Housing length | 143.0 mm |
| Location on shaft | Acc |
| Housing qty bolts | 4 |
| Sealing type | LIP |
| Housing width | 57.6 mm |
| Basic dynamic load rating | 33500.0 N |
| Basic static load rating | 22100.0 N |
| Height housing | 43.0 mm |
| Housing | GEHCJ10-TV |
| Load carrying capacity (housing) | 19600.0 N |
| Material | TV |
| Number of housings | 1.0 |
| Number of screwing holes | 4.0 |
| PFAS | nein |
| Protecting cap | KASK10 |
| Thickness of flange | 21.0 mm |
| Total height unit | 57.6 mm |
| Width of flats | 5.0 mm |
