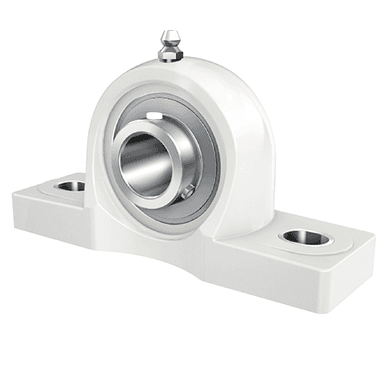

Plummer block housing units, FD design
| Class description short | Plummer block housing unit |
| Mass netto | 0.76 kg |
| Width | 42.9 mm |
| Operating temperature min. | -30.0 °C |
| Operating temperature max. | 100.0 °C |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Bearing designation | GYE35-KRR-B-FA107-VA-FD |
| Bore diameter | 35.0 mm |
| Brand | INA |
| Connection thread for lubrication | 1/4"-28 UNF |
| Distance raceway to locking collar | 25.4 mm |
| Distance fixing bore | 127.0 mm |
| Distance housing centre to cap end | 44.85 mm |
| Distance shaft axis | 47.6 mm |
| End cap | KASK07-S-G-WHT |
| Bearing in kit | GYE35-KRR-B-FA107-VA-FD |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | combi |
| Distance between mounting bolt centerlines (length) | 127.0 mm |
| Height bearing seat | 47.6 mm |
| Housing height | 94.0 mm |
| Housing in kit | RASEY35-TV-VA-FD |
| Housing material | PL |
| Housing shape | Fuss_lang |
| Housing sort | Plummer |
| Housing split | Nein |
| Inner diameter bearing | 35.0 mm |
| Housing length | 167.0 mm |
| Location on shaft | Acc |
| Housing qty bolts | 2 |
| Outer diameter bearing | 72.0 mm |
| Sealing type | LIP |
| Housing width | 48.0 mm |
| Basic dynamic load rating | 22000.0 N |
| Basic static load rating | 12300.0 N |
| Height | 94.0 mm |
| Height (base) | 18.0 mm |
| Housing | GEH.ASE07-TV-WHT |
| Length | 167.0 mm |
| Length (slot) | 18.0 mm |
| Material | TV-FD |
| Open protecting cap | KASK07-S-R-NBR-WHT |
| PFAS | nein |
| Width (base) | 48.0 mm |
| Width of flats | 3.0 mm |
| Width (slot) | 14.0 mm |
| Corrosion resistant bearing | VA |
| Special material | TV |
