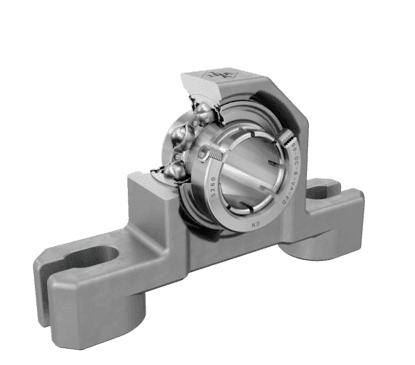

| Class description short | Plummer block housing unit |
| Mass netto | 0.7 kg |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 100.0 °C |
| Basic dynamic load rating, radial | 11100.0 N |
| Basic static load rating, radial | 5400.0 N |
| Bearing designation | OCE20-DC-B-VA-FD |
| Bore diameter | 20.0 mm |
| Brand | INA |
| Distance of raceway to locking collar | 20.6 mm |
| Distance fixing bore | 95.0 mm |
| Distance housing base | 12.7 mm |
| Distance shaft axis | 46.0 mm |
| Fatigue load limit, radial | 500.0 N |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | durchgehend |
| Distance between mounting bolt centerlines (length) | 95.0 mm |
| Height bearing seat | 46.0 mm |
| Housing height | 74.5 mm |
| Housing shape | Fuss_lang |
| Housing sort | Plummer |
| Housing split | Nein |
| Inner diameter bearing | 20.0 mm |
| Housing length | 127.0 mm |
| Location on shaft | Acc |
| Housing qty bolts | 2 |
| Sealing type | LIP |
| Housing width | 34.8 mm |
| Basic dynamic load rating | 11100.0 N |
| Basic static load rating | 5400.0 N |
| Height | 74.5 mm |
| Height (base) | 23.7 mm |
| Housing | GEH.ASE04H-VA-NAT |
| Length (slot) | 18.0 mm |
| Length total | 127.0 mm |
| Material | VA |
| Protecting cap | KASK04-VA-G-NAT |
| Total width unit | 34.8 mm |
| Width (base) | 30.0 mm |
| Width (slot) | 13.0 mm |
