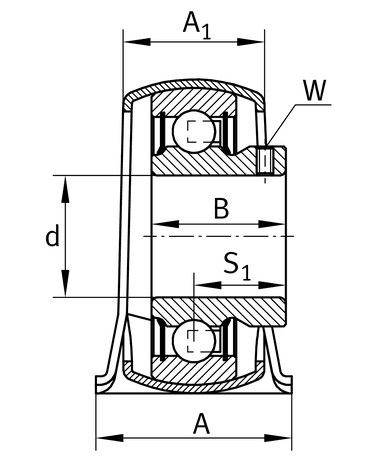

Plummer block housing unit PBY..-XL, RIBB sheet metal PB
| Class description short | Plummer block housing unit |
| Mass netto | 0.25 kg |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 120.0 °C |
| Basic dynamic load rating, radial | 14000.0 N |
| Basic static load rating, radial | 7800.0 N |
| REACH | REACH_YES_7439-92-1! |
| Bearing designation | AY25-XL-NPP-B |
| Bore diameter | 25.0 mm |
| Brand | INA |
| Calculation factor | 13.8 |
| Fixing bore | 11.5 mm |
| Distance fixing bore | 86.0 mm |
| Distance shaft axis | 28.6 mm |
| Bearing in kit | AY25-XL-NPP-B |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | durchgehend |
| Distance between mounting bolt centerlines (length) | 86.0 mm |
| Height bearing seat | 28.6 mm |
| Housing height | 56.5 mm |
| Housing in kit | PBY25-XL |
| Housing material | SB |
| Housing shape | Fuss_lang |
| Housing sort | Plummer |
| Housing split | Nein |
| Inner diameter bearing | 25.0 mm |
| Housing length | 108.0 mm |
| Location on shaft | Acc |
| Housing qty bolts | 2 |
| Outer diameter bearing | 52.0 mm |
| Sealing type | LIP |
| Housing width | 31.8 mm |
| Basic dynamic load rating | 14900.0 N |
| Basic static load rating | 7800.0 N |
| Height | 56.5 mm |
| Height (base) | 4.0 mm |
| Housing | GEH52-BT |
| Length total | 108.0 mm |
| Load carrying capacity (housing) | 1800.0 N |
| Marketing category | XL |
| Material | Steel sheet |
| PFAS | nein |
| Width (base) | 31.8 mm |
| Width (head) | 23.5 mm |
