4033,30 zł

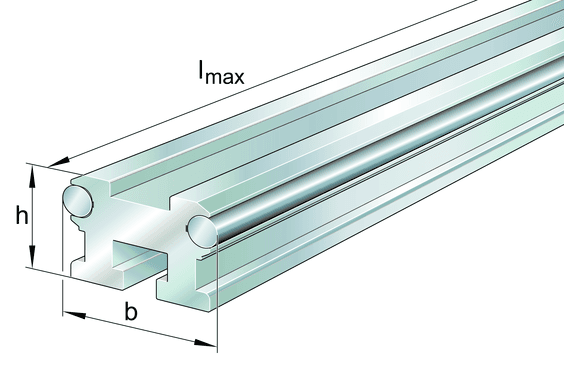

solid profile, with T-slot and lateral slots, with two raceway shafts; corrosion-resistant design possible
| Class description short | Guideway |
| Mass netto | 24.4 kg |
| REACH | REACH compliant for SVHC free linear products (acc to PL responsibles) |
| RoHS | RoHS compliant |
| Bore diameter | 10.0 mm |
| Brand | INA |
| Cross-sectional area | 994.0 mm² |
| Depth | 5.0 mm |
| Diameter | 10.0 mm |
| Distance | 42.0 mm |
| Distance | 16.8 mm |
| Height | 9.0 mm |
| Height | 25.1 mm |
| Height | 6.4 mm |
| Height | 34.0 mm |
| Increment | 250.0 mm |
| Length maximum | 8000.0 mm |
| PFAS | nein |
| Second moment of area | 170350.0 mm⁴ |
| Second moment of area | 82786.0 mm⁴ |
| Wider resistance torque | 7327.0 mm³ |
| Wider resistance torque | 4927.0 mm³ |
| Width | 18.5 mm |
| Width | 18.5 mm |
| Width | 46.5 mm |
| Width | 11.0 mm |
| Width | 52.0 mm |
| Size code | 52 |
| Type | NZZ |
