11 012,60 zł

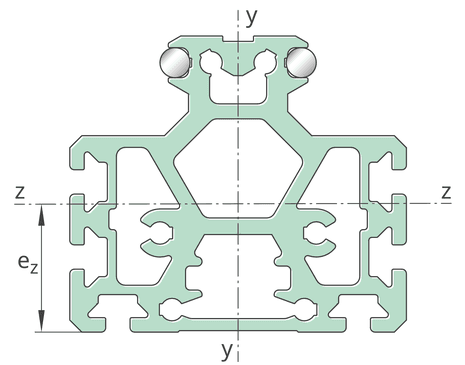

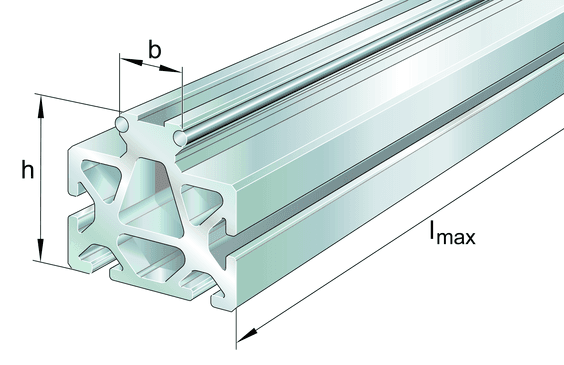

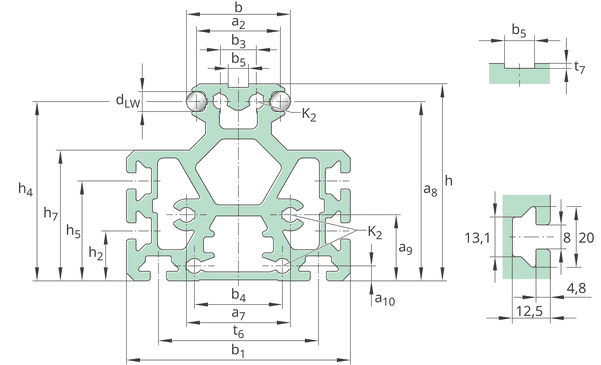

hollow section profile, with fixing slots, with two raceway shafts; corrosion-resistant design possible
| Class description short | Guideway |
| Mass netto | 67.2 kg |
| REACH | REACH compliant for SVHC free linear products (acc to PL responsibles) |
| Brand | INA |
| Cross-sectional area | 3691.0 mm² |
| Depth | 80.0 mm |
| Depth | 1.8 mm |
| Diameter | 7.45 mm |
| Diameter | 10.0 mm |
| Distance | 7.5 mm |
| Distance | 42.0 mm |
| Distance | 52.0 mm |
| Distance | 89.7 mm |
| Distance | 33.0 mm |
| Distance | 42.6 mm |
| Height | 25.0 mm |
| Height | 89.7 mm |
| Height | 65.4 mm |
| Height | 50.0 mm |
| Height | 98.6 mm |
| Length maximum | 8000.0 mm |
| PFAS | nein |
| Second moment of area | 3717250.0 mm⁴ |
| Second moment of area | 3014470.0 mm⁴ |
| Wider resistance torque | 66380.0 mm³ |
| Wider resistance torque | 55462.0 mm³ |
| Width | 44.0 mm |
| Width | 10.2 mm |
| Width | 112.0 mm |
| Width | 18.0 mm |
| Width | 52.0 mm |
| Size code | 52 |
| Type | M |
