4138,00 zł

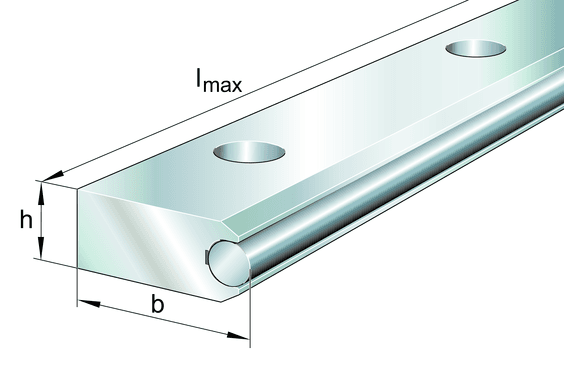

flat solid profile, half guideway, fixing hole spacing reduced, with one raceway shaft; corrosion-resistant design possible
| Class description short | Guideway |
| Mass netto | 13.7 kg |
| REACH | REACH compliant for SVHC free linear products (acc to PL responsibles) |
| RoHS | RoHS compliant |
| Bore diameter | 11.0 mm |
| Bore diameter | 19.0 mm |
| Brand | INA |
| Cross-sectional area | 629.0 mm² |
| Diameter | 10.0 mm |
| Distance | 37.0 mm |
| Distance | 9.0 mm |
| Distance | 49.0 mm |
| Distance | 49.0 mm |
| Distance | 17.0 mm |
| Distance | 17.0 mm |
| Height | 9.0 mm |
| Height | 8.0 mm |
| Height | 18.0 mm |
| Increment | 62.5 mm |
| Length maximum | 6000.0 mm |
| PFAS | nein |
| Second moment of area | 66642.0 mm⁴ |
| Second moment of area | 17798.0 mm⁴ |
| Wider resistance torque | 3765.0 mm³ |
| Wider resistance torque | 1977.0 mm³ |
| Width | 42.0 mm |
| Location of guideway | EE |
| Size code | 52 |
| Type | FH |
