5499,80 zł

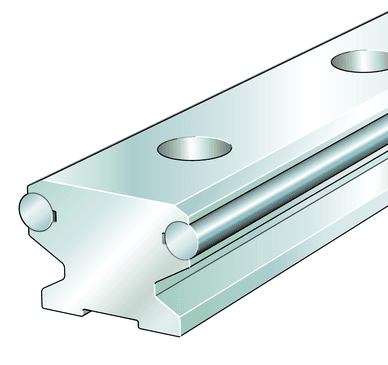

solid profile, fixing hole spacing half of E, with two raceway shafts; corrosion-resistant design possible
| Class description short | Guideway |
| Mass netto | 26.38 kg |
| REACH | REACH compliant for SVHC free linear products (acc to PL responsibles) |
| RoHS | RoHS compliant |
| Bore diameter | 11.0 mm |
| Bore diameter | 19.0 mm |
| Brand | INA |
| Cross-sectional area | 1170.0 mm² |
| Diameter | 10.0 mm |
| Distance | 42.0 mm |
| Distance | 17.8 mm |
| Distance | 49.0 mm |
| Distance | 49.0 mm |
| Distance | 17.0 mm |
| Distance | 17.0 mm |
| Height | 25.1 mm |
| Height | 21.0 mm |
| Height | 34.0 mm |
| Increment | 62.5 mm |
| Length maximum | 6000.0 mm |
| PFAS | nein |
| Second moment of area | 138624.0 mm⁴ |
| Second moment of area | 113037.0 mm⁴ |
| Wider resistance torque | 5878.0 mm³ |
| Wider resistance torque | 6350.0 mm³ |
| Width | 40.0 mm |
| Width | 52.0 mm |
| Location of guideway | EE |
| Size code | 52 |
