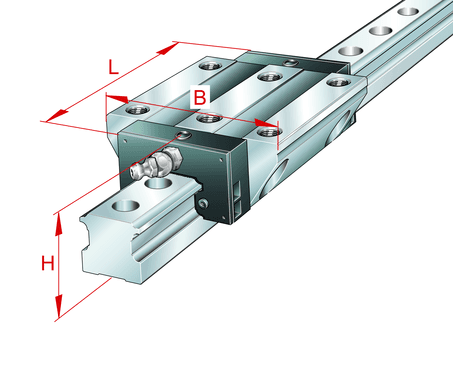

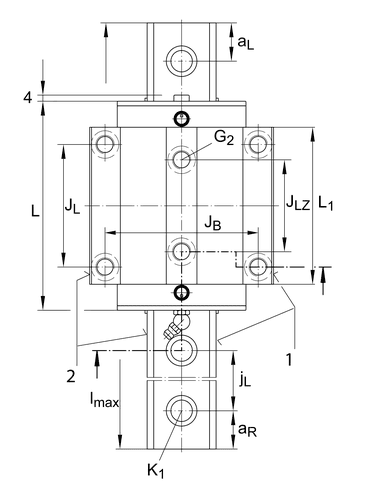

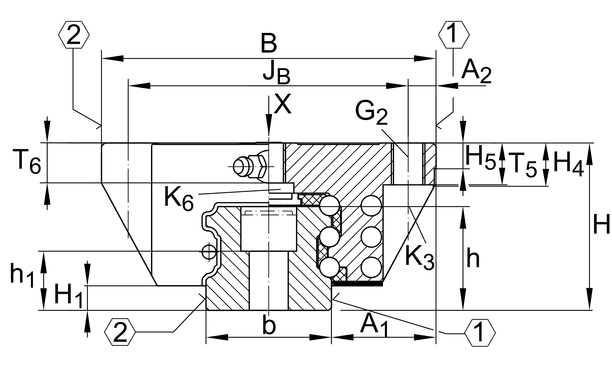

Long carriage for six-row linear recirculating ball bearing and guideway assembly

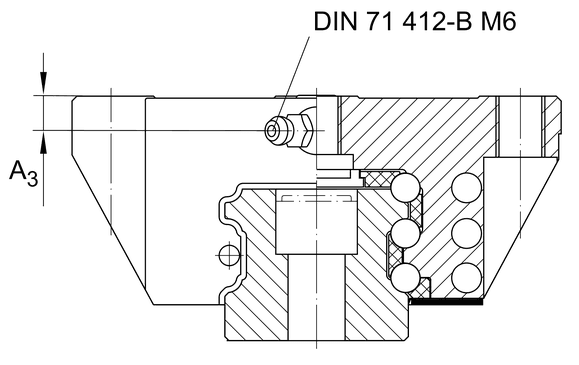

| Class description short | Recirculating ball bearing carriage |
| Mass netto | 0.882 kg |
| REACH | REACH compliant for SVHC free linear products (acc to PL responsibles) |
| Accuracy class | G3 |
| Brand | INA |
| Position lubrication connector | 6.0 mm |
| Thread depth | 10.0 mm |
| Distance from locating edge to hole | 6.5 mm |
| Distance from locating edge on carriage to locating edge on guideway | 23.5 mm |
| Free space, system dimension | 5.2 mm |
| Height system | 36.0 mm |
| Overall length carriage | 104.3 mm |
| Dynamic load rating; basic dynamic load rating, Load direction III: lateral load | 35000.0 N |
| Dynamic load rating, load direction II: tensile load | 33000.0 N |
| Dynamic load rating, load direction I: compressive load | 47000.0 N |
| Static load rating, Load direction III: lateral load | 65000.0 N |
| Static load rating, load direction II: tensile load | 62000.0 N |
| Static load rating, load direction I: compressive load | 112000.0 N |
| Marketing category | XL |
| Material name | KWSE |
| Max. diameter of lubrication hole in adjacent construction | 3.0 mm |
| Maximum permissible screw depth for lubrication connectors | 7.0 mm |
| Moment | 1160.0 Nm |
| Moment | 930.0 Nm |
| Moment | 830.0 Nm |
| O-Ring DIN 3771 | 3x1,5 |
| PFAS | nein |
| Position lubrication connector | 24.19 mm |
| Preload class | V2 |
| Maximum tightening torque | 10.0 Nm |
| Maximum tightening torque | 17.0 Nm |
| Maximum tightening torque | 24.0 Nm |
| Width carriage | 70.0 mm |
| Width rail | 23.0 mm |
| Carriage design | L |
| Size code | 25 |
| Fixing screws below (DIN ISO 4762-12.9) | M8 |
| Fixing screws below (DIN ISO 4762-12.9) | M6 |
| Fixing screws below (DIN ISO 4762-12.9) | M6 |
