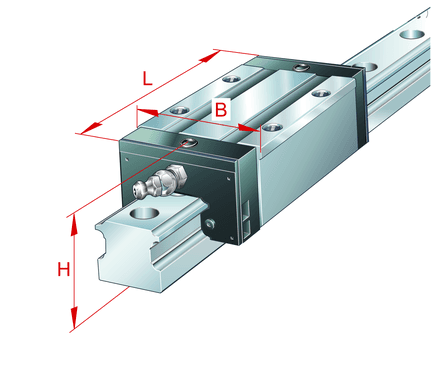

High, narrow carriage for six-row linear recirculating ball bearing and guideway assembly

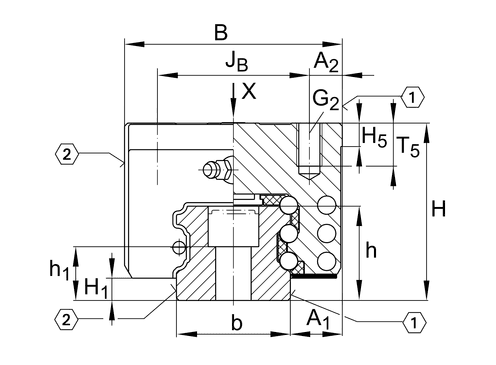

| Class description short | Recirculating ball bearing carriage |
| Mass netto | 0.38 kg |
| REACH | REACH compliant for SVHC free linear products (acc to PL responsibles) |
| Accuracy class | G2 |
| Brand | INA |
| Position lubrication connector | 5.8 mm |
| Thread depth | 6.0 mm |
| Distance from locating edge to hole | 6.0 mm |
| Distance from locating edge on carriage to locating edge on guideway | 12.0 mm |
| Free space, system dimension | 4.6 mm |
| Height system | 30.0 mm |
| Overall length carriage | 71.4 mm |
| Dynamic load rating; basic dynamic load rating, Load direction III: lateral load | 21000.0 N |
| Dynamic load rating, load direction II: tensile load | 21300.0 N |
| Dynamic load rating, load direction I: compressive load | 25500.0 N |
| Static load rating, Load direction III: lateral load | 35000.0 N |
| Static load rating, load direction II: tensile load | 35300.0 N |
| Static load rating, load direction I: compressive load | 61000.0 N |
| Marketing category | XL |
| Material name | KWSE |
| Max. diameter of lubrication hole in adjacent construction | 3.0 mm |
| Maximum permissible screw depth for lubrication connectors | 7.0 mm |
| Moment | 530.0 Nm |
| Moment | 350.0 Nm |
| Moment | 305.0 Nm |
| O-Ring DIN 3771 | 3x1,5 |
| PFAS | nein |
| Position lubrication connector | 11.95 mm |
| Preload class | V1 |
| Maximum tightening torque | 10.0 Nm |
| Width carriage | 44.0 mm |
| Width rail | 20.0 mm |
| Carriage design | H |
| Size code | 20 |
| Fixing screws below (DIN ISO 4762-12.9) | M5 |
