405,20 zł

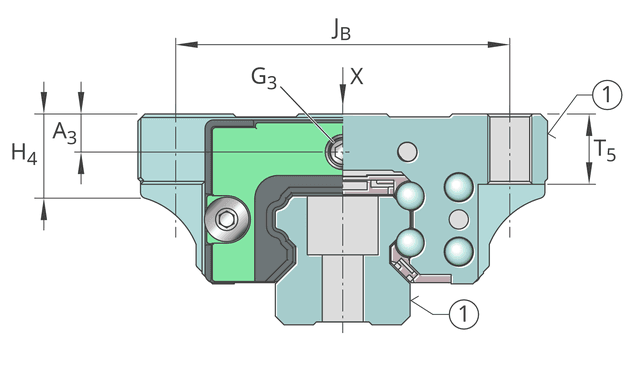

Short flanged carriage, standard end plate, for four-row linear recirculating ball bearing and guideway assembly
| Class description short | Recirculating ball bearing carriage |
| Mass netto | 0.7 kg |
| REACH | REACH compliant for SVHC free linear products (acc to PL responsibles) |
| Accuracy class | G3 |
| Brand | INA |
| Carriage design | AS |
| Position lubrication connector | 8.0 mm |
| Hole spacing | 72.0 mm |
| Thread depth | 11.5 mm |
| Carrier length | 45.0 mm |
| Distance from locating edge to hole | 9.0 mm |
| Distance from locating edge on carriage to locating edge on guideway | 31.0 mm |
| Free space, system dimension | 9.0 mm |
| Height system | 42.0 mm |
| Overall length carriage | 78.0 mm |
| Dynamic load rating | 20700.0 N |
| Basic static load capacity | 33000.0 N |
| Material name | KWLT |
| Dynamic moment rating about X-axis | 312.0 Nm |
| Dynamic moment rating about y-axis | 249.0 Nm |
| Dynamic moment rating about Z-axis | 249.0 Nm |
| Static moment rating about X-axis | 530.0 Nm |
| Static moment rating about Y-axis | 260.0 Nm |
| Static moment rating about Z-axis | 260.0 Nm |
| Preload class | V1 |
| Size code | 30 |
| Thread size, DIN ISO 4762-12.9 | M10 |
| Maximum tightening torque | 81.0 Nm |
| Width carriage | 90.0 mm |
