330,90 zł

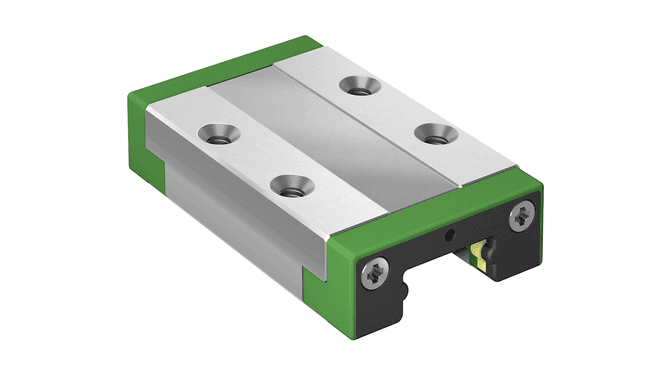

Miniature Carriage, Standard; for Miniature-Guideway, Standard
| Class description short | Miniature Carriage, Standard for Miniature-Guideway, Standard |
| Mass netto | 80.0 g |
| REACH | REACH compliant for SVHC free linear products (acc to PL responsibles) |
| Accuracy class | G2 |
| Brand | INA |
| Carriage design | / |
| Hole Spacing | 20.0 mm |
| Position lubrication connector | 2.3 mm |
| Thread size | M3 |
| Hole spacing | 25.0 mm |
| Thread depth | 4.0 mm |
| Distance from locating edge to hole | 3.5 mm |
| Distance from locating edge on carriage to locating edge on guideway | 8.5 mm |
| Free space, system dimension | 4.0 mm |
| Height system | 16.0 mm |
| Length of carriage | 44.0 mm |
| Dynamic load rating | 3900.0 N |
| Basic static load capacity | 5850.0 N |
| Material name | KWEM |
| Static moment rating about X axis | 38.9 Nm |
| Static moment rating about Y axis | 23.9 Nm |
| Static moment rating about Z axis | 23.9 Nm |
| Preload class | V0 |
| Size code | 15 |
| Maximum tightening torque | 1.1 Nm |
| Version | E |
| Width carriage | 32.0 mm |
| Width rail | 15.0 mm |
