277,20 zł

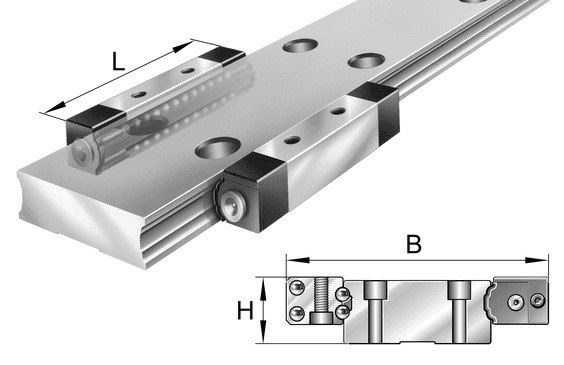

linear recirculating ball bearing units for guideway with raceways on both sides
| Class description short | Linear recirculating ball bearing unit |
| Mass netto | 24.836 g |
| REACH | REACH compliant for SVHC free linear products (acc to PL responsibles) |
| Associated rail(s) | TKVD32 |
| Brand | INA |
| Closing plug rail | KA8-TN |
| Diameter | 3.8 mm |
| Free space, system dimension | 0.5 mm |
| Height sytem | 11.0 mm |
| Height linear recirculating ball bearing units | 10.5 mm |
| Height rail | 10.0 mm |
| Length linear recirculating ball bearing units | 47.0 mm |
| Load capacity dyn | 10600.0 N |
| Load capacity dyn C | 5700.0 N |
| Max. length rail | 1960.0 mm |
| Moment ratings M0X | 203.0 Nm |
| Moment ratings M0Y | 51.0 Nm |
| Moment ratings M0Z | 51.0 Nm |
| PFAS | nein |
| Tightening torque | 1.5 Nm |
| Tightening torque | 2.5 Nm |
| Width rail | 31.8 mm |
| Width system | 51.6 mm |
| Size code | 10 |
| Thread | M3 |
| Thread | M3 |
| Suffix | B |
