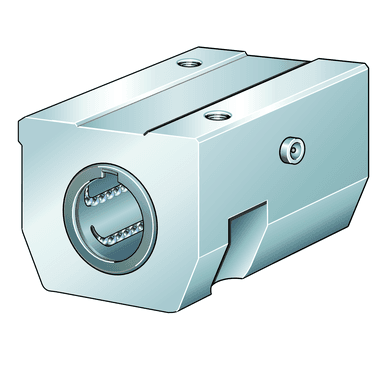

Linear ball bearing and housing unit; sealed, greased, with relubrication facility; corrosion-resistant design possible
| Class description short | Linear Ball Bearing and Housing Unit |
| Mass netto | 1.6 kg |
| Width | 87.0 mm |
| REACH | REACH compliant for SVHC free linear products (acc to PL responsibles) |
| RoHS | RoHS compliant |
| Brand | INA |
| Diameter of ball complement | 40.0 mm |
| Distance | 85.0 mm |
| Height | 73.5 mm |
| Center height | 39.0 mm |
| Length | 125.0 mm |
| Load capacity dyn. C | 8600.0 N |
| Load capacity stat. C0 | 6900.0 N |
| Lower tolerance | 0.014 mm |
| Lower tolerance | 0.15 mm |
| Lower tolerance | 0.15 mm |
| Lubrication nipple | NIPA2 |
| PFAS | nein |
| Upper tolerance | 0.01 mm |
| Upper tolerance | 0.15 mm |
| Upper tolerance | 0.15 mm |
| Relubrication facility | AS |
| Seal | PP |
| Size code | 40 |
| Version | B |
