404,40 zł

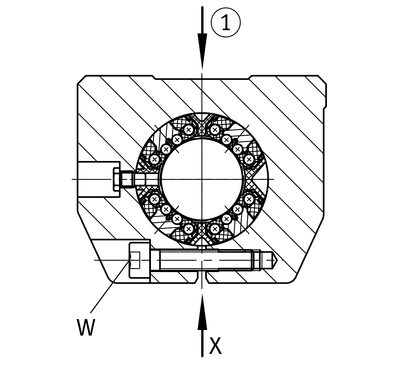

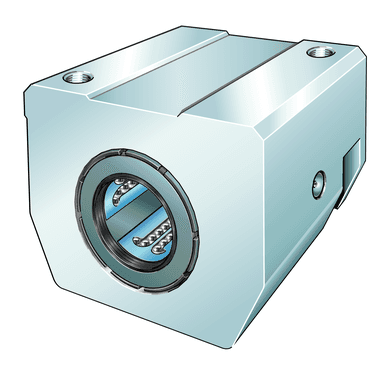

Linear ball bearing and housing unit; with self-aligning linear ball bearing, slotted design, sealed, greased, with relubrication facility
| Class description short | Linear Ball Bearing and Housing Unit |
| Mass netto | 0.1 kg |

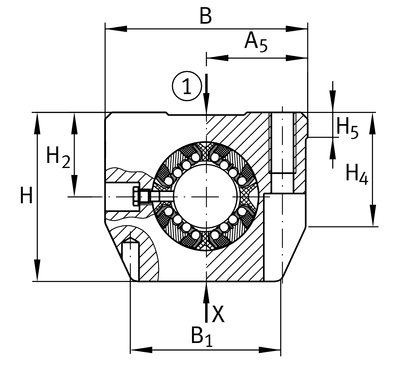

| Width | 43.0 mm |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Ball rows | 8.0 |
| Brand | INA |
| Diameter of ball complement | 12.0 mm |
| Distance | 23.0 mm |
| Height | 35.0 mm |
| Center height | 18.0 mm |
| Length | 32.0 mm |
| Load capacity dyn. | 900.0 N |
| Load capacity stat. | 1100.0 N |
| Lower tolerance | 0.01 mm |
| Lower tolerance | 0.016 mm |
| Lower tolerance | 0.15 mm |
| Lower tolerance | 0.15 mm |
| Lubrication nipple | NIP4MZ |

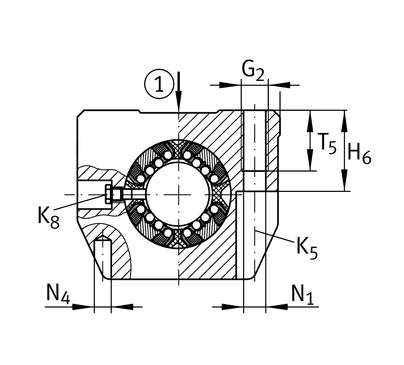

| Mounting Dimension | 16.5 mm |
| Mounting Dimension | 4.3 mm |
| Mounting Dimension | 8.0 mm |
| Mounting Dimension | 11.0 mm |
| PFAS | nein |
| Upper tolerance | 0.01 mm |
| Upper tolerance | 0.008 mm |
| Upper tolerance | 0.15 mm |
| Upper tolerance | 0.15 mm |
| Width across flats | 2.5 mm |
| Relubrication facility | AS |
| Seal | PP |
| Size code | 12 |
