764,60 zł

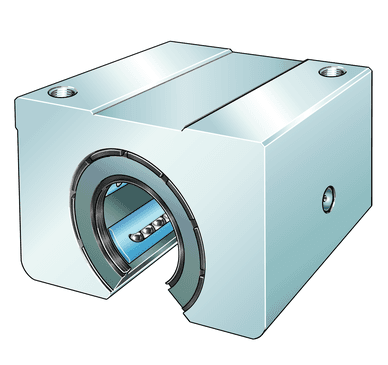

Linear ball bearing and housing unit; Heavy duty range, With segment cutout, without slot, sealed, greased, with relubrication facility
| Class description short | Linear Ball Bearing and Housing Unit |
| Mass netto | 1.4 kg |
| Width | 108.0 mm |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Angle | 56.0 ° |
| Ball rows | 6.0 |
| Brand | INA |
| Diameter of ball complement | 40.0 mm |
| Distance | 58.0 mm |
| Height | 77.0 mm |
| Center height | 45.0 mm |
| Length | 80.0 mm |
| Load capacity dyn. | 10200.0 N |
| Load capacity stat. | 9600.0 N |
| Lower tolerance | 0.01 mm |
| Lower tolerance | 0.016 mm |
| Lower tolerance | 0.15 mm |
| Lower tolerance | 0.15 mm |
| Lubrication nipple | NIP5MZ |
| PFAS | nein |
| Upper tolerance | 0.01 mm |
| Upper tolerance | 0.008 mm |
| Upper tolerance | 0.15 mm |
| Upper tolerance | 0.15 mm |
| Relubrication facility | AS |
| Seal | PP |
| Size code | 40 |
