463,40 zł

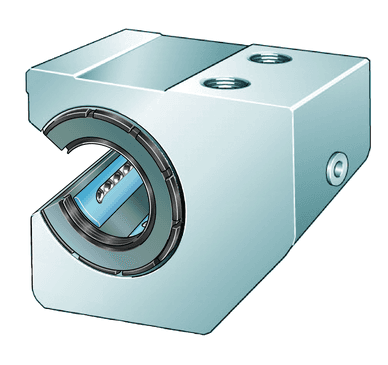

Linear ball bearing and housing unit; with self-aligning linear ball bearing, open design, sealed, greased, with relubrication facility
| Class description short | Linear Ball Bearing and Housing Unit |
| Mass netto | 0.7 kg |
| Width | 75.0 mm |
| REACH | REACH compliant for SVHC free linear products (acc to PL responsibles) |
| Angle | 57.0 ° |
| Ball rows | 6.0 |
| Brand | INA |
| Diameter of ball complement | 25.0 mm |
| Distance | 36.0 mm |
| Distance | 45.0 mm |
| Height | 72.0 mm |
| Center height | 35.0 mm |
| Length | 58.0 mm |
| Load capacity dyn. | 3950.0 N |
| Basic static load capacity | 4300.0 N |
| Lower tolerance | 0.15 mm |
| Lower tolerance | 0.01 mm |
| Lower tolerance | 0.016 mm |
| Lower tolerance | 0.15 mm |
| Lubrication nipple | NIP5MZ |
| Mounting Dimension | 21.0 mm |
| Width of sector opening | 12.5 mm |
| PFAS | nein |
| Upper tolerance | 0.15 mm |
| Upper tolerance | 0.01 mm |
| Upper tolerance | 0.008 mm |
| Upper tolerance | 0.15 mm |
| Relubrication facility | AS |
| Seal | PP |
| Size code | 25 |
