901,40 zł

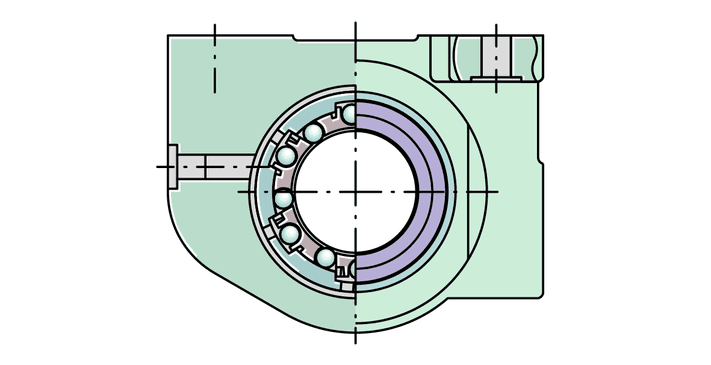

Linear ball bearing and housing unit; sealed, greased, with relubrication facility; corrosion-resistant design possible
| Class description short | Linear Ball Bearing and Housing Unit |
| Mass netto | 1.88 kg |
| Width | 130.0 mm |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Ball rows | 6.0 |
| Brand | INA |
| Diameter of ball complement | 50.0 mm |
| Height | 98.0 mm |
| Center Height | 50.0 mm |
| Length | 100.0 mm |
| Load capacity dyn. C | 8700.0 N |
| Load capacity stat. C0 | 6300.0 N |
| Lower tolerance | 0.015 mm |
| Lower tolerance | 0.002 mm |
| Lower tolerance | 0.015 mm |
| Lower tolerance | 0.2 mm |
| Lower tolerance | 0.2 mm |
| Lubrication nipple | NIPA2 |
| PFAS | nein |
| Tolerance | 0.5 mm |
| Upper tolerance | 0.015 mm |
| Upper tolerance | 0.013 mm |
| Upper tolerance | 0.015 mm |
| Upper tolerance | 0.2 mm |
| Upper tolerance | 0.2 mm |
| Relubrication facility | AS |
| Seal | PP |
| Size code | 50 |
| Tolerance | h12 |
