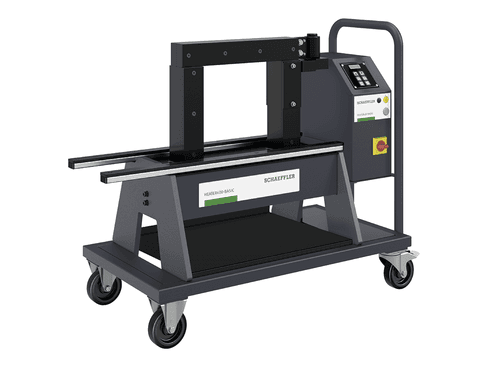

HEATER basic
| Class description short | Induction heating device |
| Mass netto | 176.0 kg |
| Brand | Schaeffler |
| Current rating | 30.0 A |
| Power frequency | 50 – 60 Hz |
| Heating time | 0 – 99 min |
| Height HEATER | 990.0 mm |
| Length HEATER | 1214.0 mm |
| Magnetic probe, quantity | 1.0 |
| Max. heating temperature | 240.0 °C |
| Max. outer diameter workpiece | 850.0 mm |
| Max. workpiece weight | 400.0 kg |
| Max. workpiece width, horizontal heating | 300.0 mm |
| Max. workpiece width, vertical heating | 315.0 mm |
| Min. inner diameter workpiece, horizontal heating | 135.0 mm |
| Min. inner diameter workpiece, vertical heating: with included yoke | 115.0 mm |
| Min. inner diameter workpiece, vertical heating: with optional yoke | 30.0 mm |
| Operating voltage | 400.0 V |
| PFAS | nein |
| Pole length | 305.0 mm |
| Space between poles | 320.0 mm |
| Pole cross section (mm²) | 80x100 |
| Power consumption | 12.0 kVA |
| Width HEATER | 560.0 mm |
| Yokes included, cross section (mm²) | 80x80 |
| Yokes included, quantity | 1.0 |
| Automatic demagnetization, <2A/cm | + |
| Automatic power reduction | + |
| Delta-T control | — |
| Device mobile | + |
| Display | Digital |
| Log function | — |
| Overheating protection | + |
| Series | BASIC |
| Device supports horizontal / lying heating of the workpiece | + |
| Device supports vertical / hanging heating of the workpiece | + |
| Swivel arm | + |
| Temperature and speed control | — |
| Temperature and time control | — |
| Temperature control | + |
| Temperature hold | + |
| Time control | + |
| Version | 400 |
