358,10 zł

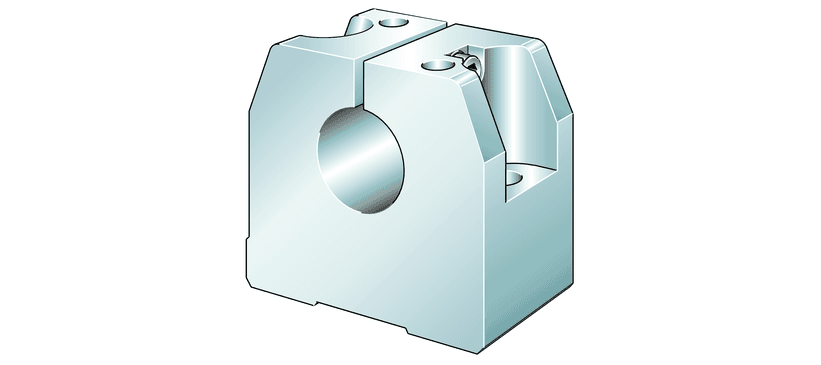

Shaft block
| Class description short | Shaft block |
| Mass netto | 0.17 kg |
| Width | 60.0 mm |
| REACH | REACH compliant for SVHC free linear products (acc to PL responsibles) |
| RoHS | RoHS compliant |
| Brand | INA |
| Diameter | 20.0 mm |
| Height | 50.0 mm |
| Length | 30.0 mm |
| Lower tolerance | 0.15 mm |
| Mounting Dimension | 30.0 mm |
| Mounting Dimension | 44.0 mm |
| Mounting Dimension | 30.0 mm |
| Mounting Dimension | 34.1 mm |
| Mounting Dimension | 7.4 mm |
| Mounting Dimension | 25.0 mm |
| Mounting Dimension | 30.0 mm |
| Mounting Dimension | 20.0 mm |
| Mounting Dimension | 8.4 mm |
| Mounting Dimension | 15.0 mm |
| Mounting Dimension | 6.0 mm |
| Mounting Dimension | 22.0 mm |
| Mounting Dimension | 42.0 mm |
| PFAS | nein |
| Tolerance | H8 |
| Upper tolerance | 0.01 mm |
| Upper tolerance | 0.01 mm |
| Lower tolerance | 0.01 mm |
| Lower tolerance | 0.01 mm |
| Upper tolerance | 0.15 mm |
| Width across Flat | 5.0 mm |
| Mounting thread below | M10 |
| Size code | 20 |
| Size thread fixing screws above | M8 |
| Version | B |
