79,00 zł

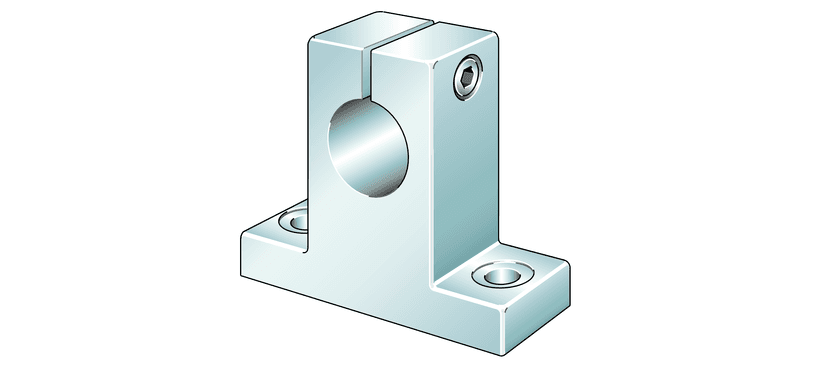

Shaft block
| Class description short | Shaft block |
| Mass netto | 0.15 kg |
| Width | 60.0 mm |
| REACH | REACH compliant for SVHC free linear products (acc to PL responsibles) |
| RoHS | RoHS compliant |
| Brand | INA |
| Diameter | 20.0 mm |
| Height | 50.0 mm |
| Length | 20.0 mm |
| Lower tolerance | 0.15 mm |
| Mounting Dimension | 32.0 mm |
| Mounting Dimension | 30.0 mm |
| Mounting Dimension | 7.5 mm |
| Mounting Dimension | 4.5 mm |
| Mounting Dimension | 10.0 mm |
| Mounting Dimension | 45.0 mm |
| PFAS | nein |
| Upper tolerance | 0.15 mm |
| Lower tolerance | 0.15 mm |
| Upper tolerance | 0.15 mm |
| Width Across Flat | 3.0 mm |
| Size Code | 16 |
| Size thread fixing screws above | M4 |
