111,70 zł

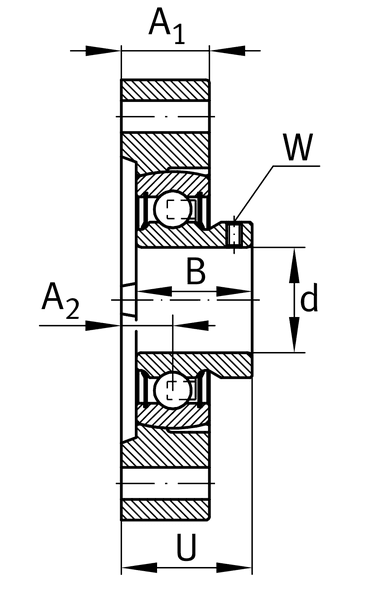

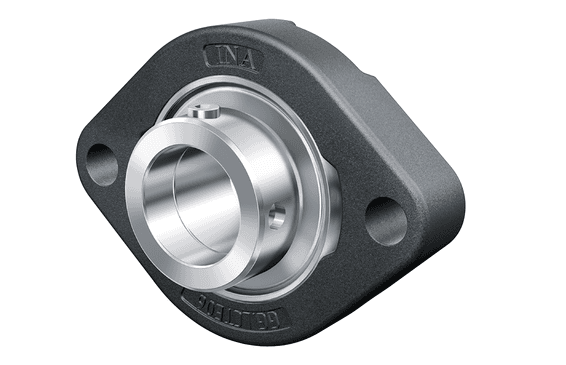

Housing units FLCTEY, two-bolt flanged housing units, cast iron, grub screws in inner ring, P seals, without relubrication facility
| Class description short | Flanged housing unit |
| Mass netto | 0.31 kg |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 120.0 °C |
| Basic dynamic load rating, radial | 13600.0 N |
| Basic static load rating, radial | 6600.0 N |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Bearing designation | AY20-XL-NPP-B |
| Bore diameter | 20.0 mm |
| Brand | INA |
| Distance fixing bore | 71.4 mm |
| Distance raceway | 9.5 mm |
| Fatigue load limit, radial | 345.0 N |
| Fixing bore | 9.0 mm |
| Flange width | 66.5 mm |
| Bearing in kit | AY20-XL-NPP-B |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | durchgehend |
| Distance between mounting bolt centerlines (length) | 71.4 mm |
| Height bearing seat | 45.25 mm |
| Housing height | 90.5 mm |
| Housing in kit | FLCTEY20-XL |
| Housing material | GG |
| Housing shape | Oval |
| Housing sort | Flanged |
| Housing split | Nein |
| Inner diameter bearing | 20.0 mm |
| Housing length | 66.5 mm |
| Location on shaft | Acc |
| Housing qty bolts | 2 |
| Outer diameter bearing | 47.0 mm |
| Sealing type | LIP |
| Housing width | 27.0 mm |
| Basic dynamic load rating | 13600.0 N |
| Basic static load rating | 6600.0 N |
| Height flange | 90.5 mm |
| Housing | LCTE04 |
| Marketing category | XL |
| Material | GG |
| Number of housings | 1.0 |
| Number of screwing holes | 2.0 |
| Outside diameter eccentric locking collar | 33.0 mm |
| PFAS | nein |
| Pitch circle diameter (holes) | 71.4 mm |
| Thickness of flange | 17.0 mm |
| Total height unit | 27.0 mm |
