2015,50 zł

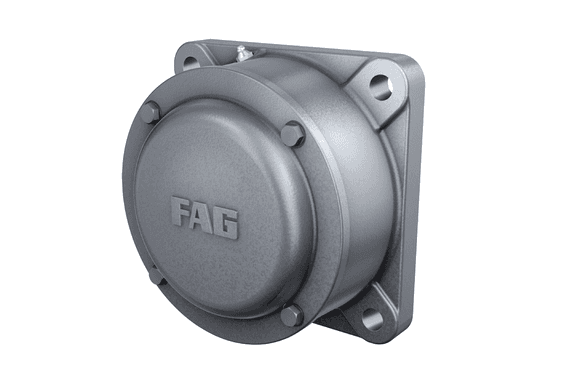

Flanged housing for various bearing types, with conical bore and clamping sleeve, closed on one side
| Class description short | Flanged housing |
| Mass netto | 18.179 kg |
| REACH | REACH_SVHC! |
| RoHS | RoHS compliant with declarable substances |
| Brand | FAG |
| Connection thread for lubrication | M10x1 |
| Distance flange to bearing seat | 29.0 mm |
| Distance shaft axis | 125.0 mm |
| Flange width | 250.0 mm |
| Height flange | 250.0 mm |
| Number of fastening holes | 4.0 |
| Outside diameter bearing | 180.0 mm |
| PFAS | nein |
| Pich circle diameter fixing holes | 280.0 mm |
| Shaft diameter | 90.0 mm |
| Size of fixing screws | M20 |
| Thickness of flange | 30.0 mm |
