4640,20 zł

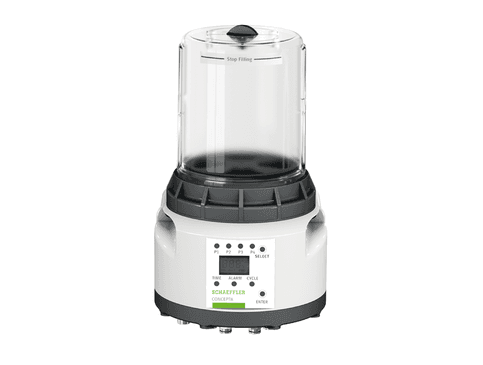

CONCEPT8, Multi-point lubricator
| Class description short | Automatic lubricator CONCEPT |
| Mass netto | 3.0 kg |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Brand | Schaeffler |
| Current consumption (DC 24 V) | ≤ 350 mA |

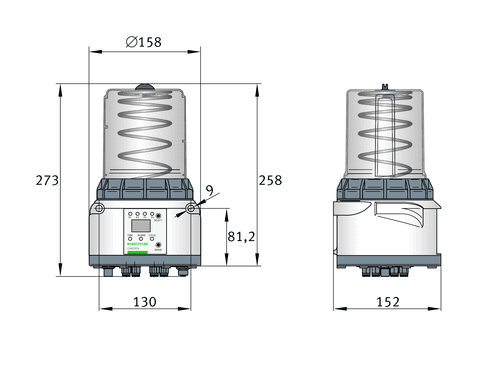

| Dimensions (mm) | 158 x 273 x 152 |
| Lubricant volume | 1000.0 cm³ |
| Metering quantity (per outlet and stroke/impulse) | 0.15 cm³ |
| Number of lubrication points: direct | ≤ 8 |
| Number of lubrication points: with progressive distributors | > 16 |
| Number of lubrication points: with splitters | ≤ 16 |
| Number of outlets | 4.0 |
| Number of pump bodies | 2.0 |
| Operating pressure, max. | 70.0 bar |
| Operating temperature, max. | 70.0 °C |
| Operating temperature, min. | -20.0 °C |
| PFAS | nein |
| Connection plug for multi-function interface | M12 x 1, 4 pin |
| Connection | PA hose |
| Controller (extern) | PLC |
| Controller (integrated) | microelectronic |
| Drive system | PP |
| Error message | Empty level, back pressure, internal error (PLC) |
| Functional principle | Piston pump |
| Housing material | Aluminium (powder coated), polyamide |
| Lubricant | Lubricating oil > 68 mm²/s |
| Lubricant volume | V800/1000 |
| Monitoring: fill level | Integrated, reed switch |
| Monitoring: pressure | Integrated, electronic |
| Mounting position | vertical |
| Operating voltage | DC 24 V |
| Protection class | IP65 |
