254,10 zł

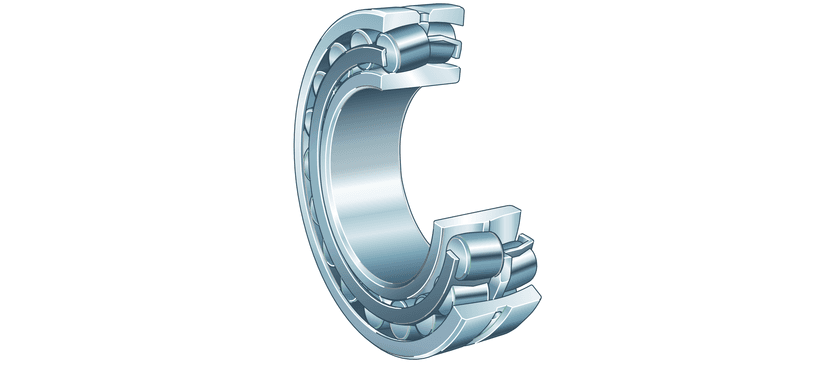

Spherical roller bearings 222..-E1, main dimensions to DIN 635-2
| Class description short | Spherical Roller Bearing |
| Mass netto | 0.423 kg |
| Width | 23.0 mm |
| Operating temperature min. | -30.0 °C |
| Operating temperature max. | 200.0 °C |
| Basic dynamic load rating, radial | 89000.0 N |
| Basic static load rating, radial | 81000.0 N |
| Limiting speed | 10700.0 1/min |
| Reference speed | 7000.0 1/min |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Bore diameter | 35.0 mm |
| Bore diameter outer ring | 62.5 mm |
| Bore type | Z |
| Brand | FAG |
| Diameter lubrication hole | 3.2 mm |
| Dynamic axial load factor | 2.21 |
| Dynamic axial load factor | 3.29 |
| Fatigue load limit, radial | 9700.0 N |
| Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y | 0.31 |
| Marketing category | XL |
| Maximum diameter of housing shoulder | 65.0 mm |
| Maximum recess radius | 1.0 mm |
| Minimum diameter shaft shoulder | 42.0 mm |
| Minimum chamfer dimension | 1.1 mm |
| Outside diameter | 72.0 mm |
| PFAS | nein |
| Raceway diameter of the inner ring | 43.9 mm |
| Static axial load factor | 2.16 |
| Width of lubricating groove | 4.8 mm |
| Cage | JPA |
| Design | E1 |
| Relubrication feature | Standard |
