111,30 zł

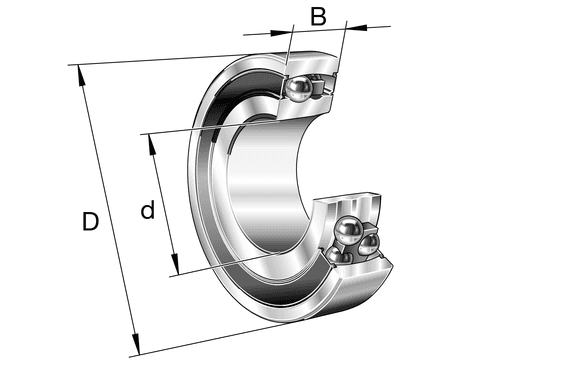

Self-aligning ball bearing 22..-2RS-TVH, seals, plastic cage
| Class description short | Self-aligning ball bearing |
| Mass netto | 0.165 kg |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Brand | FAG |
| Outside diameter | 52.0 mm |
| Bore diameter | 25.0 mm |
| Width | 18.0 mm |
| Tolerance class | PN |
| Basic dynamic load rating, radial | 12300.0 N |
| Basic static load rating, radial | 3300.0 N |
| Type of Seal | 2RS |
| Lubricant | GA14 |
| Cage | TVH |
| Bore type | Z |
| Limiting speed | 8500.0 1/min |
| Version code | >N |
| Dynamic axial load factor | 3.65 |
| Fatigue load limit, radial | 209.0 N |
| Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y | 0.27 |
| Maximum diameter of housing shoulder | 46.4 mm |
| Maximum fillet radius | 1.0 mm |
| Static axial load factor | 2.47 |
| Dynamic axial load factor | 2.36 |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 100.0 °C |
| Minimum chamfer dimension | 1.0 mm |
| Shoulder diameter outer ring | 43.596 mm |
| Caliber diameter outer ring | 45.27 mm |
| Shoulder diameter inner ring | 32.9 mm |
| Caliber diameter inner ring | 30.7 mm |
| Minimum diameter shaft shoulder | 30.6 mm |
| Radial internal clearance | C3 (Group 3) |
| PFAS | nein |
