PLN 2,790.30

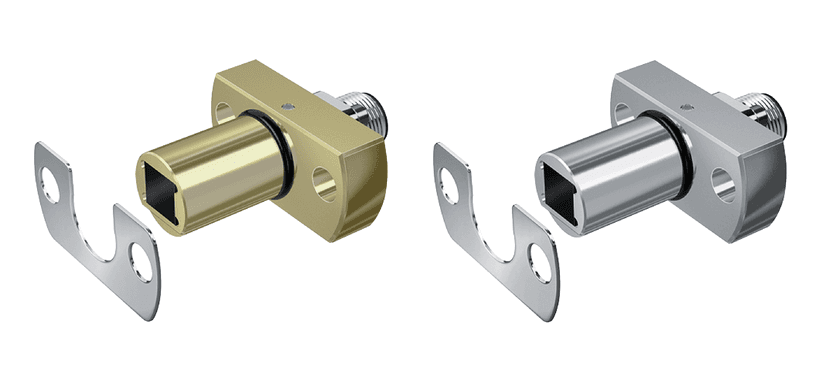

Measuring heads
| Mass netto | 38.0 g |
| Bolting torque max | 10.0 Nm |
| Bolting torque min | 9.0 Nm |
| Bore diameter sensor SRMH | 6.6 mm |

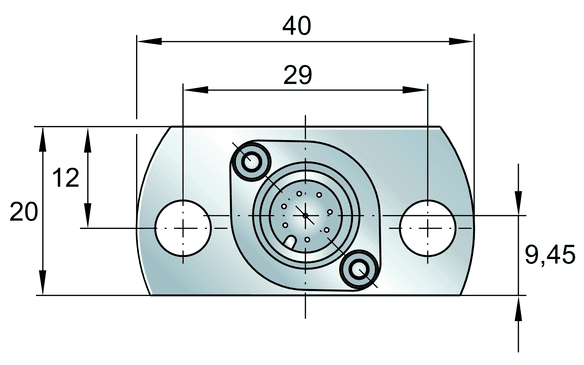

| Bore pitch width sensor SRMH | 29.0 mm |
| Brand | INA |
| Cylinder head screws SRMH | ISO4762 M6x20-8.8 |
| Diameter sensor housing SRMH | 15.9 mm |
| Flange length sensor SRMH | 40.0 mm |
| Flange width sensor SRMH | 20.0 mm |
| Length SRMH cylindrical housing | 25.0 mm |
| Length SRMH excluding plugs | 35.0 mm |
| Length SRMH total | 48.5 mm |
| Operating temperature max | 70.0 °C |
| Operating temperature min | 0.0 °C |
| PFAS | nein |
| Colour | yellow |
| Ingress protection | IP67 |
