PLN 108,187.90

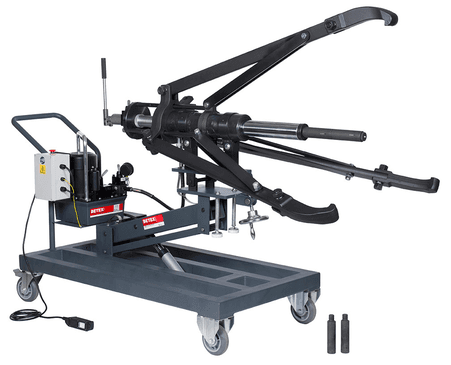

BETEX HXPM, 2/3-arm self-centering, max. pull-off force 490 kN, long version, mobile
| Class description short | Mobile hydraulic heavy duty hook puller |
| Mass netto | 400.0 kg |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Brand | Betex |
| Castors | 2 swivel castors with brake function, 2 fixed castors |
| Current type | AC power |
| Dimensions [LxWxH] (mm) | 2545 x 800 x 1155 |
| Functional principle | electrically operated hydraulic unit for main cylinder and height adjustment, safety valve prevents overload, opening and closing of the gripper arms by means of hand pump |
| Grip depth, max. | 780.0 mm |
| Grip width, max. | 1250.0 mm |
| Grip width, min. | 200.0 mm |
| Included in delivery | Remote control, 4 adapter pieces (total length 620 mm), security blanket |
| Max. operating pressure | 700.0 bar |
| Max. working stroke main cylinder | 330.0 mm |
| PFAS | nein |
| Power frequency | 50 – 60 Hz |
| Pulling force | 490.0 kN |
| Usability | two- or three-arm puller (convertible) |
| Voltage | 230.0 V |
| Working height range [bottom – center axis cylinder] (mm) | 820 – 1370 |
| Series | HXPM |
