8.582,00 PLN

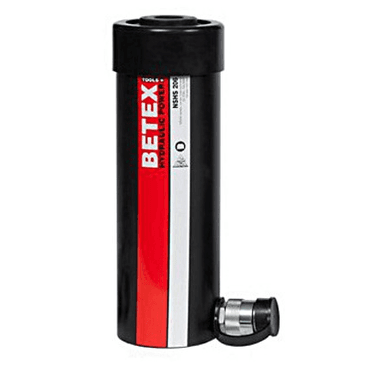

BETEX NSHS Hollow-piston cylinder, single-acting, spring return, 20T class
| Class description short | Hydraulic cylinder, 700 bar |
| Mass netto | 13.5 kg |
| Advance force, max. | 238.0 kN |
| Base mounting holes, bolt circle | 82.6 mm |
| Base mounting holes, thread (UNC) | 3/8"-16 UN |
| Base mounting holes, thread depth | 9.4 mm |
| Base to advance port | 19.0 mm |
| Brand | Betex |
| Capacity class (tons) | 20 |
| Center hole diameter | 27.0 mm |
| Collar thread (UN) | 3⅞"-12 UN |
| Collar thread, length | 38.0 mm |
| Cylinder bore diameter | 75.0 mm |
| Height, extended | 461.0 mm |
| Height, retracted | 306.0 mm |
| Oil capacity | 527.0 cm³ |
| Operating pressure, max. | 700.0 bar |
| Outer diameter | 98.5 mm |
| Effective piston area | 34.0 cm² |
| Plunger diameter | 55.0 mm |
| Plunger female thread (UN) | 1 9/16"-16 UN |
| Plunger thread length | 25.0 mm |
| Product specifics | Hard chrome plated and hardened piston, Rolled inside of cylinder, Sandblasted outside with black nitride coating, Coupling with dust cap |
| Saddle diameter | 54.0 mm |
| Saddle protrusion from plunger | 7.0 mm |
| Stroke | 155.0 mm |
| Series | NSHS |
| Version | 20T |
