3.604,40 PLN

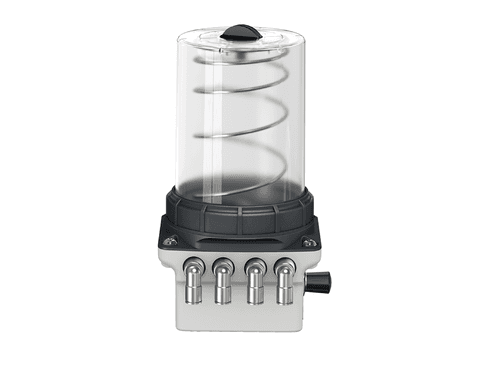

CONCEPT4, Multi-point lubricator
| Class description short | Automatic lubricator CONCEPT |
| Mass netto | 1.5 kg |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Brand | Schaeffler |
| Current consumption (DC 24 V) | ≤ 350 mA |

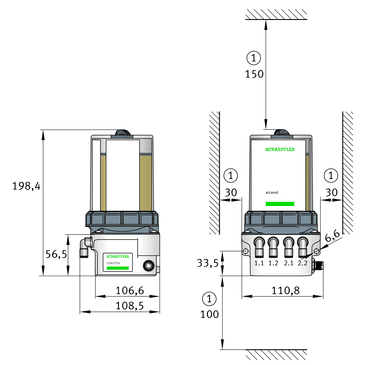

| Dimensions (mm) | 108,5 x 198,4 x 110,8 |
| Lubricant volume | 400.0 cm³ |
| Metering quantity (per outlet and stroke/impulse) | 0.16 cm³ |
| Number of lubrication points: direct | ≤ 4 |
| Number of lubrication points: with progressive distributors | > 12 |
| Number of lubrication points: with splitters | ≤ 8 |
| Number of outlets | 4.0 |
| Number of pump bodies | 2.0 |
| Operating pressure, max. | 70.0 bar |
| Operating temperature, max. | 60.0 °C |
| Operating temperature, min. | -15.0 °C |
| PFAS | nein |
| Connection plug for multi-function interface | M12 x 1, 4 pin |
| Connection | PA hose |
| Controller (extern) | PLC |
| Drive system | PP |
| Functional principle | Piston pump |
| Housing material | Polyamide |
| Lubricant | ≤ NLGI 3 (suitability test required) |
| Lubricant volume | V400 |
| Monitoring: pressure | Integrated, electronic |
| Mounting position | vertical |
| Operating voltage | DC 24 V |
| Protection class | IP54 |
