1.666,20 PLN
CONCEPT2, Multi-point lubricator
| Class description short | Automatic lubricator CONCEPT |
| Mass netto | 1.0 kg |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Brand | Schaeffler |

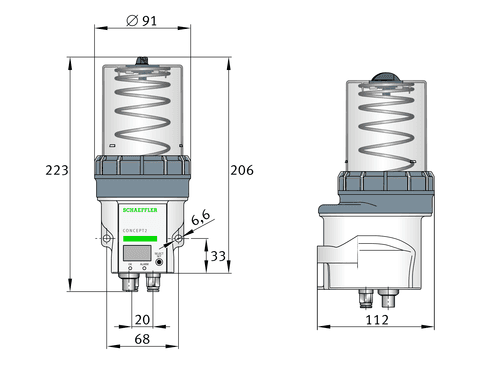

| Dimensions (mm) | 91 x 223 x 112 |
| Lubricant volume | 250.0 cm³ |
| Metering quantity (per outlet and stroke/impulse) | 0.15 cm³ |
| Number of lubrication points: direct | ≤ 2 |
| Number of lubrication points: with progressive distributors | > 4 |
| Number of lubrication points: with splitters | ≤ 4 |
| Number of outlets | 2.0 |
| Number of pump bodies | 2.0 |
| Operating pressure, max. | 30.0 bar |
| Operating temperature, max. | 70.0 °C |
| Operating temperature, min. | -20.0 °C |
| PFAS | nein |
| Connection | PA hose |
| Controller (extern) | PLC |
| Controller (integrated) | microelectronic |
| Drive system | PP |
| Error message | Empty level, back pressure, internal error (PLC) |
| Functional principle | Piston pump |
| Housing material | Polyamide |
| Lubricant | ≤ NLGI 2 (suitability test required) |
| Lubricant volume | V250/300 |
| Monitoring: fill level | External (PLC) |
| Monitoring: pressure | Integrated, electronic |
| Mounting position | vertical |
| Operating voltage | 3-V lithium-metal battery |
| Protection class | IP54 |
